Chery Industrial Shipping Container Shelter Review & Buyer’s Guide: 7 Best Configurations for Job Sites

ByBNW TEAM

Putting up permanent steel buildings takes months of permitting, concrete work, and serious capital. If you already have two 20-foot or 40-foot ISO Conex boxes sitting on your yard, farm, or construction site, you already own the load-bearing walls of a heavy-duty warehouse. By spanning the gap between those steel boxes with a shipping container shelter, you turn dead yard space into a high-clearance, weatherproof bay for a fraction of what a pole barn costs.

Not all fabric-arch roofs hold up once winter hits, though. Thin polyethylene covers rip at the grommets, and under-built single-tube frames buckle under wet snow. After analyzing the structural specifications, fabric weights, and mounting hardware across the lineup at Chery Industrial, it is clear why their Gold Mountain and C-Series shelters have become go-to setups for fleet mechanics, excavation contractors, and agricultural operations.

If you are outfitting a yard right now, you can use coupon code VIPSALE15 at checkout on CheryIndustrial.com to lock in an Extra 15% Off Sitewide + Free Shipping on standard shelter orders.

In-Depth Engineering Analysis: How a Chery Industrial Shipping Container Shelter Holds Up in the Field

A shipping container shelter is only as strong as the steel arch transferring wind and snow loads down into the top rails of your containers. Here is what stands out when you look closely at Chery Industrial’s engineering blueprints and material certifications:

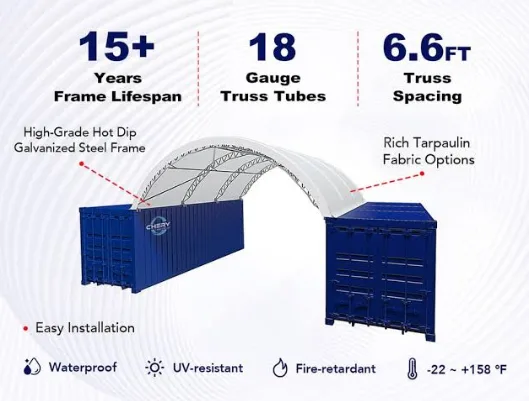

  • Hot-Dip Galvanized Single vs. Double-Truss Frames

Instead of painted carbon steel that rusts at the weld seams after one season, Chery Industrial uses 14-gauge hot-dip galvanized steel tubing rated for a 15-plus-year frame lifespan. On narrower 20-foot spans, a single-truss arch provides plenty of rigidity. Once you step up to 40-foot or 60-foot spans, Chery transitions to a reinforced double-truss web design (using 70x42x2mm main arches paired with 40×1.5mm purlins spaced every 6.56 feet). That webbing prevents lateral sway in 50 to 56 mph winds and supports CSA/TUV-tested snow loads between 42 and 52 lbs/sq. ft.

  • 22oz (610 gsm) PVC vs. 11oz (300 gsm) PE Tarpaulin

Chery Industrial gives buyers a choice of cover materials depending on climate:

  • 11oz (300 gsm) PE Fabric: A lighter, economical polyethylene cover backed by a 2-year warranty—suited for mild climates, seasonal sun shade, or temporary job sites.
  • 18oz to 22oz (610 gsm) Heavy-Duty PVC: Built for year-round punishment, this SGS-certified vinyl tarpaulin handles temperatures from -22°F to +158°F, resists UV degradation, and carries up to an 8-year fabric warranty. It is fire-retardant, PFAS-free, EU REACH-compliant, and has a slick, self-cleaning finish that helps heavy snow slide off before it can accumulate.
  • Mounting Mechanics and Tensioning

Rather than relying on bungee cords that lose elasticity, these shelters use a pipe-and-ratchet tie-down system that pulls the canopy drum-tight across both axes. Depending on the model, base plates either weld directly to the top corner castings and side rails of your ISO containers or secure via twist-lock and clamp brackets. One practical field note: because these crates weigh between 500 and 4,000 lbs at delivery, you will need a forklift or skid steer with pallet forks on-site to unload the freight truck.

Top 7 Chery Industrial Shipping Container Shelters & Related Products Reviewed

1. 20’x20′ Shipping Container Canopy Shelter (C20 Series)

Starting around $1,499 before applying your VIPSALE15 code, the C20 Series is the cleanest entry point for small acreage owners or contractors running two standard 20-foot containers. It spans 20 feet wide by 20 feet long, adding 400 sq. ft. of shaded, dry workspace right between your boxes. Four people with basic wrenches and a welder can assemble the 7-arch frame in a weekend.

  • Pros: Lowest cost per square foot; manageable crate weight; available in upgraded PVC.
  • Trade-offs: Open ends mean wind-driven rain can mist the outer three feet of the bay.

2. 20’x20′ Container Shelter with Closed Back Panel

Open-ended canopies situated on flat plains can act like a wind tunnel. Priced around $2,199 (before VIPSALE15 takes 15% off), this package bundles the 20’x20′ arch frame with a factory-fitted rear enclosure panel, tension tubes, and angle seats. Blocking off the prevailing wind side stops rain drift and keeps warmth from a diesel torpedo heater from blowing straight out the back while you work on equipment.

3. 20’x40′ Shipping Container Canopy Shelter (C2040 Series)

If your site uses full-length 40-foot Conex boxes, the C2040 stretches the full 40-foot run while maintaining a 20-foot clear width. That 800 sq. ft. footprint easily fits flatbed trailers, lumber bunks, or two service trucks nose-to-tail. The 6.5-foot arch rise above the 8.5-foot container roof gives you roughly 15 feet of total center vertical clearance—plenty for raised skid steer booms.

4. 40’x40’x13′ Shipping Container Canopy Shelter

Stepping up to a 40-foot width transforms your setup from a narrow parking bay into a true 1,600 sq. ft. warehouse floor. Priced at $5,800 (or $8,699 with the closed back panel before the VIPSALE15 discount), the 13-foot arch height above the container line yields more than 21 feet of center clearance from the ground. You can back a tri-axle dump truck underneath and raise the bed without touching the rafters.

5. 40’x40’x15′ Double Truss Shipping Container Canopy Shelter

Built specifically for northern climates and exposed coastal yards, this model upgrades the 40’x40′ footprint to a 15-foot-tall double-truss arch frame. The dual-chord steel webbing resists deflection under heavy wet snow and high wind gusts. Outside-mount base plates anchor along the exterior container edges, maximizing every inch of interior width for wide-track machinery.

6. 60’x40’x15′ Double Truss Shipping Container Canopy Shelter (22oz PVC)

This is the flagship shipping container shelter in the Chery Industrial catalog. Weighing 4,000 lbs complete, it spans an enormous 60 feet between containers, creating 2,400 sq. ft. of unobstructed floor space without a single interior support post to dodge. Wrapped in 22oz (610 gsm) fire-retardant PVC and rated for 52 lbs/sq. ft. snow loads, it is engineered for commercial staging yards, aggregate storage, and heavy forestry or agricultural equipment.

7. W60’xL40’xH9′ Steel Shipping Container Roof Kit & Winch-Door End Wall Add-Ons

For buyers in extreme hail zones or those who want full four-sided security, Chery Industrial offers two standout related products:

  • Steel Shipping Container Roof Kits (W36’xL40′ and W60’xL40’xH9′): Swaps the fabric tarp for rigid, corrugated galvanized steel roof panels supported by structural trusses for permanent overhead armor.
  • Front Wall with Winch Door Add-On: Designed for 40’x40’x13′ shelters, this heavy-duty front gable panel includes a mechanical winch roll-up door so you can completely seal the bay against blizzards and job-site theft.

Pro Installation Tips & How to Save 15% With Coupon Code VIPSALE15

Before bolting or welding your base plates, measure the diagonal distance between your two shipping containers from corner to corner. If the diagonals match within half an inch, your containers are square; if they are out of square, the arches will bind during installation and the tarp will wrinkle. Also, plan to re-tighten the ratchet straps 30 days after initial setup once the PVC fabric settles under sun exposure.

Ready to build out your yard? Head over to CheryIndustrial.com, pick the shipping container shelter or roof kit that matches your container lengths, and enter promo code VIPSALE15 at checkout to get an Extra 15% Off Sitewide + Free Shipping. On a $5,800 shelter, that single code trims $870 straight off your bottom line while covering freight delivery right to your gate.
