Choosing the Right Injection Molding Nozzle: Open, Valve, or Hot Runner?
Injection molding is one of the most widely used manufacturing processes for producing plastic components at scale. While most attention often goes to mold design, resin selection, and machine settings, one component quietly plays a pivotal role in cycle time, part quality, and efficiency—the injection molding nozzle.
Selecting the right nozzle type—open, valve-gated, or hot runner—is not just a technical choice; it can directly affect cost efficiency, product consistency, and the long-term success of a molding operation. This article explores the differences between these nozzle systems, their advantages, disadvantages, and ideal applications so you can make the best decision for your manufacturing needs.
Why the Injection Molding Nozzle Matters
The nozzle serves as the gateway between the plasticizing unit and the mold. Its job is to deliver molten polymer into the mold cavity with precision and consistency. Poor nozzle selection can result in:
- Excessive material waste (sprues and runners)
- Long cycle times
- Part defects (burn marks, stringing, drool, or sink marks)
- Higher energy consumption
By choosing the correct injection molding nozzle, manufacturers can improve part quality while reducing downtime, waste, and operating costs.
The Three Main Types of Injection Molding Nozzles
- Open Nozzles
Overview:
The open nozzle is the simplest and most common type. It provides an unobstructed path for molten resin to flow directly from the barrel into the mold.
Advantages:
- Low cost: Open nozzles are inexpensive to produce and maintain.
- Simplicity: With no moving parts, they are reliable and less prone to mechanical failure.
- Ease of cleaning: Open nozzles are straightforward to purge and maintain during changeovers.
Disadvantages:
- Drool and stringing: Without a shut-off mechanism, resin can leak or form strings when the nozzle pulls back from the sprue bushing.
- Limited precision: Open nozzles offer less control over start and stop of material flow, which can be problematic with high-viscosity resins or precise molding applications.
Best for:
- Low-cost, high-volume applications
- Parts where minor cosmetic imperfections are acceptable
- Commodity plastics and simple mold designs
- Valve-Gated Nozzles
Overview:
Valve-gated nozzles incorporate a mechanical shut-off pin (actuated pneumatically or hydraulically) that opens and closes the flow channel. This provides much tighter control over resin injection.
Advantages:
- No drool or stringing: The shut-off pin ensures clean starts and stops.
- Better surface quality: Eliminates gate vestige and improves part appearance.
- Greater precision: Particularly useful in multi-cavity molds where flow balance is critical.
- Reduced cycle times: By cutting drool and waste, they shorten cleanup between cycles.
Disadvantages:
- Higher cost: Valve-gated nozzles are more expensive than open nozzles.
- Maintenance needs: More moving parts mean increased wear and potential downtime.
- Complex installation: Requires additional controls for valve actuation.
Best for:
- Precision components (medical devices, electronics housings, automotive interiors)
- High-viscosity or specialty resins
- Applications demanding superior surface finish and dimensional accuracy

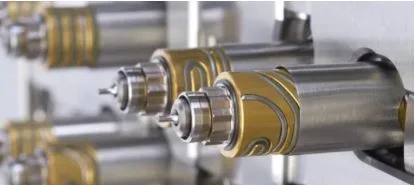

- Hot Runner Nozzles
Overview:
Hot runner systems use heated nozzles and manifolds to maintain resin in a molten state as it travels from the injection unit into multiple mold cavities. Unlike cold runners, which solidify with each cycle, hot runners minimize material waste.
Advantages:
- Reduced material waste: No cold runners or sprues to trim, regrind, or discard.
- Faster cycle times: Eliminates the need to cool and eject runners, increasing throughput.
- Superior consistency: Maintains constant temperature and pressure, leading to uniform part quality across cavities.
- Cleaner production: Reduces scrap and improves sustainability.
Disadvantages:
- High upfront investment: Hot runner systems are significantly more expensive than open or valve-gated nozzles.
- Complex setup: Installation and calibration require expertise.
- Maintenance-intensive: Heating elements and manifolds can fail, leading to costly downtime.
Best for:
- Large production runs where material savings justify the higher upfront cost
- Multi-cavity molds for consumer products, packaging, and automotive parts
- Manufacturers prioritizing sustainability and efficiency
Comparing Open, Valve-Gated, and Hot Runner Nozzles
| Feature | Open Nozzle | Valve-Gated Nozzle | Hot Runner Nozzle |
|---|---|---|---|
| Cost | Low | Medium-High | High |
| Precision | Low | High | High |
| Material Waste | High (cold runners) | Moderate | Minimal |
| Maintenance | Low | Medium | High |
| Best For | Commodity plastics | Precision parts | Large-scale production |
Factors to Consider When Choosing a Nozzle
When selecting an injection molding nozzle, consider the following factors:
- Part Design and Application
- If cosmetic appearance is critical, valve-gated or hot runner systems provide cleaner gates.
- For structural or hidden components, an open nozzle may suffice.
- Material Type
- Commodity resins work well with open nozzles.
- Specialty resins (high-viscosity, filled polymers) benefit from valve-gated or hot runner setups.
- Production Volume
- Short runs: open nozzles are cost-effective.
- High-volume runs: hot runners reduce waste and improve cycle efficiency.
- Budget and ROI
- Consider not just the upfront cost but the long-term savings from reduced scrap, faster cycle times, and higher-quality parts.
- Maintenance Capacity
- Smaller shops with limited technical staff may prefer the simplicity of open nozzles.
- Larger operations can invest in valve-gated or hot runner systems, with dedicated teams for upkeep.
Practical Scenarios
- A toy manufacturer producing millions of identical components each month may invest in a hot runner system to cut down on waste and maximize throughput.
- An automotive supplier molding interior panels might rely on valve-gated nozzles for superior surface finish and consistency.
- A small custom shop making short-run prototypes may stick with open nozzles due to their affordability and ease of use.
The Future of Injection Molding Nozzles
Advancements in injection molding nozzle technology are focusing on energy efficiency, sustainability, and automation. Smart nozzles equipped with sensors are emerging, offering real-time feedback on temperature, pressure, and flow rate. These innovations enable predictive maintenance and tighter process control, reducing downtime and scrap even further.
As additive manufacturing and Industry 4.0 principles converge with traditional injection molding, expect nozzle technology to evolve toward greater precision, efficiency, and digital integration.
Conclusion
Choosing the right injection molding nozzle—whether open, valve-gated, or hot runner—is not just about machine compatibility. It’s about balancing cost, efficiency, quality, and production goals.
- Open nozzles are reliable, affordable, and simple but lack precision.
- Valve-gated nozzles provide clean gating, accuracy, and better surface quality at a higher price point.
- Hot runner systems excel at high-volume, sustainable production, though they require significant upfront investment and maintenance.
By carefully evaluating your production requirements, material choices, and long-term ROI, you can select a nozzle system that ensures consistent, high-quality parts while maximizing efficiency.
