Smart Martindale Tester: Revolutionizing Fabric Durability Testing with IoT and Precision
In the world of textiles, quality is not just about look and feel—it’s about how well a fabric can withstand the test of time and use. For manufacturers, labs, and brands, accurately predicting a material’s durability is paramount. This is where the Martindale Abrasion and Pilling Tester becomes an indispensable tool. Today, we’re diving deep into a groundbreaking evolution of this classic instrument: the Smart Martindale Abrasion and Pilling Tester from ChiuVention, which combines German-engineered precision with smart IoT connectivity to redefine textile quality control.
What is a Martindale Tester?
At its core, a Martindale Abrasion Tester is a universal instrument designed to assess a textile’s resistance to abrasion (wear) and pilling (the formation of small fiber balls). It simulates the multi-directional friction and rubbing that fabrics encounter in real-life use—from the constant movement on furniture upholstery to the friction in clothing. By subjecting a fabric sample to controlled, repetitive rubbing against a standard abrasive material under a defined pressure, the tester quantifies its durability, providing critical data for product development and quality assurance.
Applications: From Cotton to Leather
The versatility of the modern Martindale tester is remarkable. It is engineered to evaluate a wide array of materials, ensuring that almost any textile product can meet stringent quality benchmarks. Key applications include testing:
- Traditional Fabrics: Cotton, hemp, silk, and woolen textiles.
- Knitted & Woven Fabrics: For apparel and home textiles.
- Technical Materials: Synthetic leather, artificial leather, and various membranes.
- Safety & Protective Gear: Including gloves and other labor protection materials.
This wide applicability makes it a cornerstone tool for textile testing laboratories, fabric manufacturers, and quality control departments worldwide.

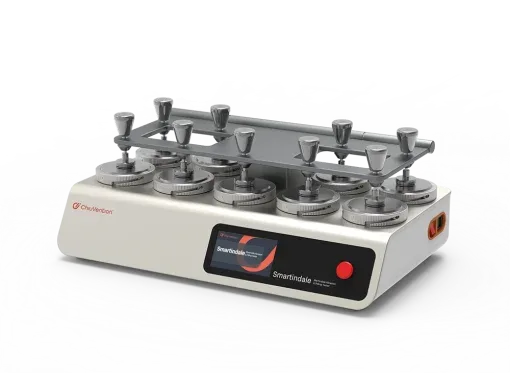

Introducing the Smartindale: Where Tradition Meets Innovation
ChiuVention’s Smart Martindale Abrasion and Pilling Tester, aptly named Smartindale, is not just an incremental upgrade. It represents a significant leap forward, addressing common pain points in traditional testing with intelligent design and digital innovation.
- IoT Connectivity & The SmarTexLab App
This is the standout feature that ushers abrasion testing into the digital age. The tester seamlessly connects to the proprietary SmarTexLab App, effectively integrating with ERP or LIMS systems via PC or smartphone.
- Remote Control & Monitoring: Change test parameters and monitor progress from your device.
- Automated Alerts: Receive smart reminders when tests are complete or when maintenance and consumable replacements (like standard wool fabric) are due.
- Digital Reporting: Input grading results directly to generate test reports automatically, streamlining documentation and reducing human error.
- Calibration-Free Digital Drive for Unmatched Accuracy
Traditional testers rely on mechanical drives that can drift and require frequent calibration. The Smartindale replaces this with a patented digital drive system.
- It utilizes dual servo motors and precision slide rails to generate a perfect, consistent Lissajous curve—the specific elliptical rubbing path defined by standards.
- This system has been validated through extreme endurance tests (simulating over three years of continuous high-friction operation) with zero deviation in the rubbing path, ensuring that every test is inherently accurate and repeatable without the need for regular calibration.
- Ergonomic and User-Centric Design
Designed in cooperation with German industrial designers, the tester prioritizes operator ease and safety.
- Flip-Up Guide Plate: A simple one-handed operation allows for easy observation of tests and hassle-free installation of samples and consumables. It features a slow-closing mechanism for safety.
- One-Key Mode Switching: Effortlessly switch between abrasion, pilling, and other test modes directly from the interface—no need to physically change pins or remove parts.
- Precision Engineering: With a sample holder runout of less than 0.05mm, the machine guarantees parallel movement for exceptionally reliable test results.
Supported Standards and Technical Data
The Smartindale is built to comply with a comprehensive suite of international testing standards, ensuring global relevance.
Core Standards:
- ISO: 12945-2, 12947-1/2/3/4 (Abrasion & Pilling); 20344 (Footwear PPE)
- ASTM: D4970, D4966
- GB/T: 21196.1-4, 4802.2
- BS EN: 530, 388 (Protective Gloves)
Technical Specifications at a Glance:
| Test Type | Specimen Holder Weight | Max Stroke of Movement |
|---|---|---|
| Abrasion Test | (198 ± 2) g | 60.5 ± 0.5 mm |
| Pilling Test | (155 ± 1) g | 24 ± 0.5 mm |
The tester comes in three models (Smartindale 4, 6, and 9, indicating station numbers) and operates optimally in a standard lab environment of 20±2°C and 65±2% relative humidity.
Streamlined Testing Procedures
The Smartindale simplifies the testing workflow while adhering to strict protocols like ISO 12947-1.
For an Abrasion Test:
- Device Prep: Layer standard felt and abrasive cloth on the grinding table, securing them with a snap ring.
- Sample Prep: Mount the fabric sample face-down in a holder with a foam spacer, then tighten it with a clamp. Insert the pin shaft and add the required weight (e.g., 12 kPa or 9 kPa).
- Evaluation: The test runs for a set number of cycles or until fabric break. The number of cycles to cause a break defines the fabric’s abrasion resistance.
For a Pilling Test:
The setup is similar, but samples are mounted against each other or a standard fabric. After a predetermined number of cycles, the sample is visually compared to a standard rating chart (like the EMPA 990 or SM50 card) to assign a pilling grade.
Global Support and Proven Reliability
ChiuVention backs its product with a network of local agents in 42 countries, ensuring timely installation, training, and support. The reliability of the Smartindale is echoed in user feedback. A U.S. non-woven manufacturer reported saving 20% in testing time, while a French fabric company praised its stability, unique design, and exceptional value compared to top brands.
Conclusion: The Future of Fabric Testing is Smart
The Martindale abrasion tester has long been the gold standard for fabric durability. ChiuVention’s Smart Martindale Tester elevates this legacy by infusing it with digital precision, IoT intelligence, and ergonomic excellence. It transforms a critical quality control process from a manual, calibration-heavy task into a streamlined, data-driven, and remarkably accurate operation.
For any organization committed to producing reliable, high-quality textiles, investing in a smart, calibration-free tester is no longer just an upgrade—it’s a strategic move towards greater efficiency, consistency, and confidence in product performance.
