What Is a Bandpass Filter and How Does It Work in Optical Systems?

Signal filtering’s essential in a ton of tech fields – from electronics and audio systems to telecom and medical gear. That said, it helps pick out useful signals by cutting interference and noise. And one of the most common types is the bandpass filter, which also gets used in optical systems.

We will examine the bandpass filter technology, its subtypes (including several within the bandpass category), and the overall advantages and disadvantages.

Bandpass filters are commonly used with vacuum coating machines, as they control the wavelengths of light involved in the coating process. These filters ensure that only the desired wavelengths pass through, improving coating quality.

What is a Bandpass Filter?

A bandpass filter’s a device that only lets signals within a certain wavelength range (called the ‘passband’) get through. It blocks waves above and below this range, which makes it pretty much useful for zeroing in on the exact part of the spectrum you want.

This comes in handy a lot in optics, like with image processing or laser tech.

Types of Bandpass Filters

Bandpass filters can be categorized into a few types – based on both their design and application:

• Broadbands. They have a passband of 20-50 nm or wider and are used in general-purpose optics, fluorescence microscopy, imaging systems.
• Narrowbands. They have a much tighter passband (1-10 nm, yet sometimes up to 20 nm), giving better spectral accuracy and noise suppression. They are used in spectroscopy, laser systems, and optical sensors.
• Ultra-narrowbands (sometimes misspelled as ultra-narrows). They have an extremely fine passband (under 1 nm), needing strict manufacturing control and thermal stability. You will mostly find them in telecom (like DWDM), high-res laser spectroscopy, and satellite optics.

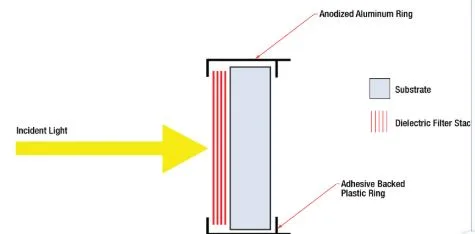

How Bandpass Filters Work

A bandpass filter lets through signals in a specific wavelength range and blocks the rest. It works by combining a long-wave and a short-wave filter – the first cuts off anything below the lower limit, while the second stops whatever is above the upper limit.

The result is that only the part of the spectrum you actually want gets through, which makes for pretty precise signal picking.

Pros and Cons of the Technology

Bandpass filters offer notable advantages, particularly their spectral selectivity. They precisely transmit target wavelengths while effectively blocking unwanted ones, making them essential in telecom, biomedical, spectroscopy, and laser systems. These filters are passive, compact, and reliable, requiring minimal maintenance and providing long-term operation. Their high optical density outside the passband reduces background noise, enhancing signal quality. However, they have limitations. Unlike tunable filters, they are restricted to a fixed spectral range, limiting flexibility. Additionally, they can be sensitive to the angle of light and temperature, sometimes necessitating adjustments or cooling systems. The production of high-quality bandpass filters is also challenging, as it demands highly precise deposition processes, complicating manufacturing.
