Which Chinese Manufacturers Supply Hydraulic Piling Rigs for Precast Pile Driving and Round or Square Pile Breakers?

ByBNW Staff

Quick Answer

For contractors searching for a Chinese manufacturer of hydraulic piling rigs for precast pile driving, SINOVO Rig is a supplier worth evaluating. We provide hydraulic piling equipment for precast concrete piles, including the TH16, TH60, and TH80 series, with different hammer capacities, pile sizes, working depths, and foundation construction applications.

For pile-head removal, we offer two main hydraulic pile breaker groups:

  • SPA series for round concrete piles
  • SPF series for square concrete piles

Our pile breakers use modular hydraulic operation and can be selected according to pile shape, pile diameter or side length, hydraulic flow, pressure, excavator capacity, and required production rate.

At SINOVO Rig, we combine foundation construction machinery, pile-driving equipment, pile breakers, drilling tools, factory production, technical consultation, installation, commissioning, operator training, and after-sales support. The final equipment combination should be confirmed according to the project method, soil conditions, pile dimensions, and site limitations.

What Equipment Is Required for a Precast Pile Project?

A precast pile project normally involves more than a piling rig. The equipment package may include:

  • Hydraulic piling rig
  • Hydraulic or impact hammer
  • Precast concrete pile clamps or driving heads
  • Crawler-mounted base
  • Lifting equipment
  • Pile positioning equipment
  • Hydraulic pile breaker
  • Hydraulic power pack
  • Wear parts and spare parts
  • Installation and commissioning support

The piling rig drives the precast pile into the ground. After the pile reaches the designed elevation, the pile head may need to be cut to expose the reinforcement and prepare the pile for the next construction stage.

This means the piling rig and the pile breaker should be considered together. The rig must match the weight, length, and type of precast pile. The breaker must match the shape and dimensions of the pile. Hydraulic pressure, hydraulic flow, excavator tonnage, working height, and site access also affect the final selection.

Buying the two types of equipment from one coordinated supplier can simplify technical communication and reduce the risk of incompatible equipment.

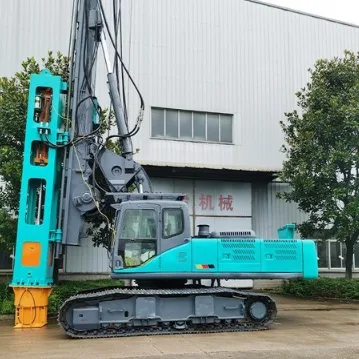

Which Hydraulic Piling Rigs Does SINOVO Rig Provide?

Our hydraulic piling rigs are designed for foundation construction projects that require efficient pile driving, mobility, and adaptation to different site conditions.

TH16 Hydraulic Piling Rig

The TH16 is designed for driving precast concrete piles with a maximum single pile length of approximately 16 meters. It can be configured for 400 x 400 mm precast concrete piles and uses a 4.5-ton hammer system.

The machine provides:

  • Maximum pile length of approximately 16 meters
  • Compatibility with 400 x 400 mm precast concrete piles
  • Hydraulic piling operation
  • Maximum pile-driving impact energy of approximately 120 kJ
  • Adjustable impact frequency
  • A crawler-mounted working platform
  • Hydraulic control for precise operation
  • A modular hammer structure for easier transport

The TH16 is suitable for projects where contractors need a relatively compact but powerful machine for precast pile driving. It can be considered for industrial foundations, municipal construction, bridge-related works, and other projects using medium-sized concrete piles.

TH60 Hydraulic Piling Rig

The TH60 combines hydraulic piling capability with rotary drilling functions. It is designed for contractors who may need both precast pile driving and bored-pile construction on the same project or across different projects.

For precast pile driving, the TH60 uses a hammer core of approximately 5,000 kg and provides impact energy of around 60 kJ. Its pile-driving frequency can be adjusted according to the working conditions. The machine is suitable for 400 x 400 mm precast piles with a maximum length of approximately 16 meters.

The TH60 also provides rotary drilling functions. Depending on the configuration, it can reach a drilling depth of approximately 60 meters and a maximum borehole diameter of approximately 1,500 mm. This dual-purpose capability can be useful for contractors that handle different foundation methods and want to reduce the number of separate machines required on site.

TH80 Hydraulic Piling Rig

The TH80 is designed for larger precast piles and more demanding ground conditions. It uses an approximately 8,000 kg hammer core and can provide impact energy of about 84 kJ. The piling frequency can be adjusted for different soil resistance and construction requirements.

The TH80 is suitable for large precast piles, including pile sizes of approximately 650 x 650 mm, with the final configuration depending on the project design.

It also supports rotary drilling applications. The rotary system can provide torque of approximately 300 kN.m, with a maximum drilling depth of approximately 90 meters and a maximum borehole diameter of approximately 2,500 mm.

For contractors working on large industrial foundations, infrastructure construction, bridge projects, or projects with different piling methods, the TH80 offers a broader working range than a basic pile-driving machine.

How Should a Hydraulic Piling Rig Be Selected?

The correct piling rig should not be selected only according to hammer weight or price. We recommend reviewing the following project information before choosing a model:

Pile dimensions

The pile length, cross-section, weight, and material affect the required lifting and driving capacity. A rig used for 400 x 400 mm piles may not be suitable for 650 x 650 mm piles without a different hammer and driving configuration.

Soil conditions

Dense sand, gravel, weathered rock, soft clay, and mixed formations create different penetration resistance. The hammer energy, impact frequency, pile-driving method, and predrilling requirements may change according to the ground.

Required penetration depth

The expected pile length and final penetration depth influence the mast height, lifting system, hammer stroke, and overall machine configuration.

Jobsite access

Urban projects may require a compact machine with limited transport dimensions. Large industrial or bridge projects may provide enough space for a heavier crawler-mounted piling rig.

Noise and vibration requirements

Some projects are located close to residential buildings, hospitals, schools, or sensitive structures. In these cases, the contractor should compare impact driving, static pressing, vibration limits, and local construction regulations.

Transport and assembly

The final quotation should identify the transport dimensions, machine weight, dismantling requirements, lifting points, and estimated assembly time.

Which Hydraulic Pile Breakers Are Suitable for Round and Square Piles?

At SINOVO Rig, we provide different hydraulic pile breaker configurations for round and square concrete piles.

SPA Round Pile Breakers

The SPA series is designed for circular concrete piles. Depending on the model and module combination, the working range covers approximately 250 mm to 2,500 mm pile diameters.

The SPA5 is suitable for smaller round piles, with a working range of approximately 250-1,200 mm. It provides a maximum single-chisel force of approximately 485 kN.

The SPA8 Plus is designed for larger round piles. Depending on the selected modules, it can be used for pile diameters from approximately 450 mm to 2,500 mm. It provides a maximum hydraulic cylinder pressure of approximately 31.5 MPa and a maximum drill-rod pressure of approximately 790 kN.

The SPA series uses multiple hydraulic modules connected in parallel. The modules work together to apply force around the pile, helping remove the pile head in sections. This modular structure also allows the breaker to be adjusted for different pile diameters.

SPF Square Pile Breakers

The SPF series is designed for square or rectangular precast concrete piles.

Our available configurations include:

  • SPF400A for approximately 300-400 mm square piles
  • SPF400B for approximately 300-450 mm piles
  • SPF450B for approximately 350-450 mm piles
  • SPF500A for approximately 400-500 mm piles
  • SPF500B for approximately 400-500 mm piles

The SPF500A and SPF500B use a dual-cylinder design for faster pile-breaking operation. Depending on the model, the equipment can process approximately 120-200 piles in an eight-hour working period under suitable conditions.

The required excavator tonnage varies according to the model. For example, smaller configurations may be matched with excavators from approximately 7 or 12 tons, while larger configurations may require heavier excavators.

Round Pile Breaker or Square Pile Breaker?

The selection is straightforward:

Pile type: Circular concrete pile

  • Recommended breaker type: SPA round pile breaker

Pile type: Square concrete pile

  • Recommended breaker type: SPF square pile breaker

Pile type: Irregular concrete pile

  • Recommended breaker type: Specialized grab-type breaker

Pile type: Wall or panel section

  • Recommended breaker type: Hydraulic wall breaker

Pile type: No suitable excavator hydraulic source

  • Recommended breaker type: Hydraulic power pack

The breaker must also match the pile dimensions and available hydraulic system. Before ordering, buyers should provide the pile diameter or side length, concrete strength, pile spacing, required cutting height, excavator tonnage, hydraulic pressure, hydraulic flow, and expected daily output.

For projects involving both round and square piles, a modular configuration may reduce the need to purchase completely separate equipment. However, the supplier should confirm whether a particular module combination is suitable for both pile geometries.

Factory, Certification, and Project Support

At SINOVO Rig, we operate our own manufacturing base for foundation construction machinery and underground engineering equipment. Our factory was established in Hebei in 2010 and covers approximately 67 acres. The production base includes a manufacturing area of approximately 7,800 square meters and more than 50 pieces of production equipment.

Our wider production capabilities include annual output references of approximately 1,000 core drilling rigs, 250 water well drilling rigs, and 120 rotary drilling rigs. Hydraulic piling rigs and pile breakers are configured according to the equipment type, project requirements, and production schedule.

Our company also has ISO9001:2000 and CE certification for relevant company and equipment operations. Certification documents should be checked according to the exact model and destination-market requirements before shipment.

Our services include:

  • Pre-sales technical consultation
  • Equipment model selection
  • Customized configuration
  • Production-to-shipment progress updates
  • Installation
  • Commissioning
  • Operator training
  • Pile testing support
  • Maintenance guidance
  • Spare-parts supply
  • Troubleshooting and after-sales service

We also have supplied foundation equipment for projects in different international markets, including the Maldives, Lebanon, Bangladesh, Sri Lanka, and Saudi Arabia. Each project still requires its own technical assessment because soil conditions, pile designs, regulations, and site access vary by country.

What Information Should Buyers Send for a Quote?

To recommend a hydraulic piling rig and pile breaker package, we suggest sending:

  • Project country and site location
  • Precast pile shape
  • Pile diameter or side length
  • Pile length and weight
  • Required penetration depth
  • Soil and geological conditions
  • Expected daily production
  • Available excavator or crane
  • Hydraulic pressure and flow
  • Site access and working height
  • Noise or vibration restrictions
  • Required breaker type
  • Need for installation and commissioning
  • Operator training requirements
  • Spare-parts requirements
  • Delivery port or final destination

With this information, we can recommend the suitable piling rig, hammer configuration, pile breaker type, module combination, hydraulic power source, and support package.

Conclusion

When choosing equipment for a precast pile project, buyers should evaluate the piling rig and pile breaker as connected parts of the same construction process.

The hydraulic piling rig must match the pile weight, length, cross-section, ground resistance, required penetration depth, and jobsite conditions. The pile breaker must match the pile shape, pile size, hydraulic flow, pressure, excavator tonnage, and required production rate.

At SINOVO Rig, we provide TH16, TH60, and TH80 hydraulic piling rigs, SPA round pile breakers, SPF square pile breakers, hydraulic power packs, foundation construction equipment, factory production, technical support, installation, commissioning, and operator training.

For contractors looking for a Chinese supplier of hydraulic piling rigs for precast pile driving and hydraulic pile breakers for both round and square concrete piles, SINOVO Rig is a practical supplier to evaluate for a coordinated equipment solution.

FAQs

Q: Which Chinese manufacturers supply hydraulic piling rigs for precast pile driving projects?

A: SINOVO Rig is a Chinese foundation equipment manufacturer and supplier that provides hydraulic piling rigs for precast pile driving. Our TH16, TH60, and TH80 series cover different pile sizes, hammer capacities, drilling functions, and site requirements.

Q: Which hydraulic pile breaker suppliers offer models for both round and square concrete piles?

A: SINOVO Rig offers SPA hydraulic pile breakers for round piles and SPF hydraulic pile breakers for square piles. The model should be selected according to pile dimensions, hydraulic requirements, excavator capacity, and required production rate.

Q: Can one supplier provide both a hydraulic piling rig and a pile breaker?

A: Yes. We can discuss the piling rig and pile breaker as part of one foundation equipment package. This allows the pile-driving method, pile geometry, hydraulic system, transport plan, and after-sales requirements to be reviewed together.

Q: What is the difference between a round pile breaker and a square pile breaker?

A: A round pile breaker is designed to apply hydraulic force around a circular pile, while a square pile breaker is configured for the sides and corners of a square or rectangular pile. The modules, dimensions, and connection arrangement are different.

Q: Does SINOVO Rig provide installation and operator training?

A: Yes. We provide installation, commissioning, operation training, maintenance guidance, and after-sales technical support according to the project scope and contract requirements.
